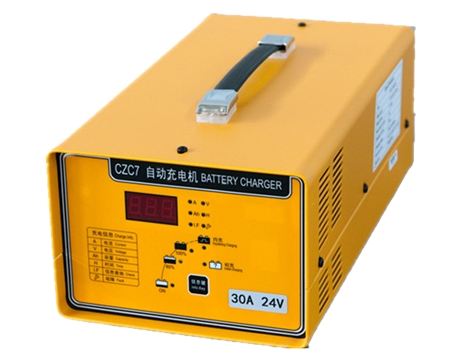

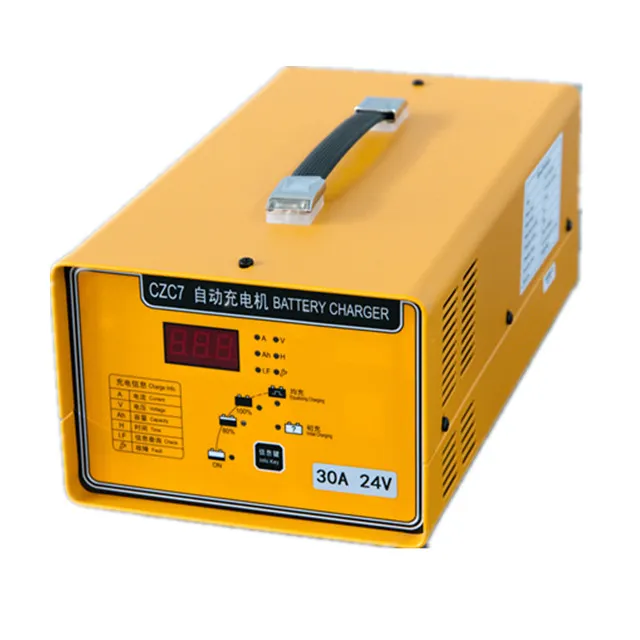

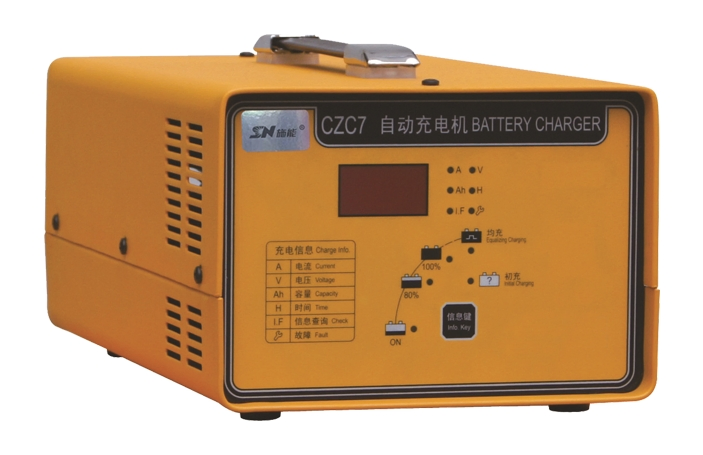

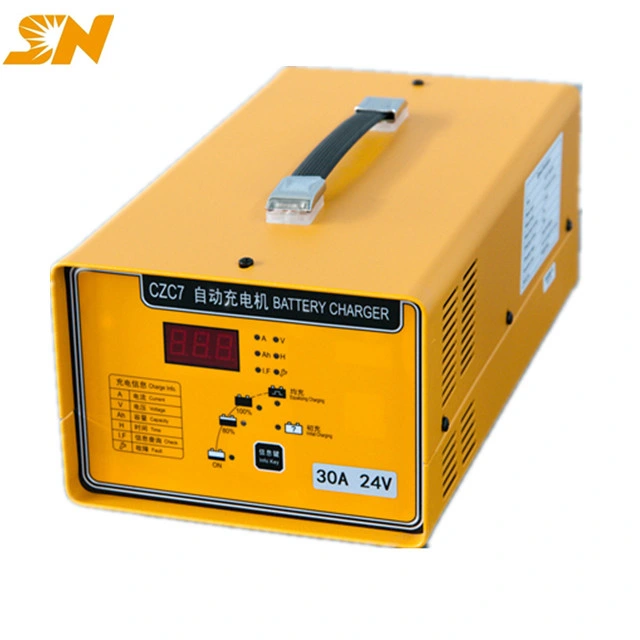

Shineng Czc7 12V 24V 36V 48V 72V 10A 20A 30A 40A 50A 120ah 200ah 150ah 110V 220V AC Lead Acid AGM Gel Battery Charger for Electric Stacker Forklift Tow Tractor

1 / 5

Shineng Czc7 12V 24V 36V 48V 72V 10A 20A 30A 40A 50A 120ah 200ah 150ah 110V 220V AC Lead Acid AGM Gel Battery Charger for Electric Stacker Forklift Tow Tractor

Customization:	Available
Type:	Lead Acid Battery
Charger Type:	Electric Charger

Send Inquiry

Product Description

Basic Info.

Model NO.

CZC7

Charger Application

Standard Battery

Nominal Voltage

24V

Charger Style

Intelligent Charger

Compatible Battery Type

24V

Size

24V/20A

Certification

Input Voltage

Single Phase 50-60Hz

Input Power

0.72 Kw

Battery Range

130-165ah

Battery Type

Lead Acid Battery

Warranty

1 Year

Product Description

Combine high frequency switch mode with micro-processor for optimal charging.
Effectively prolong the working life period of the battery.
Automatically control charging process without operator intervention.

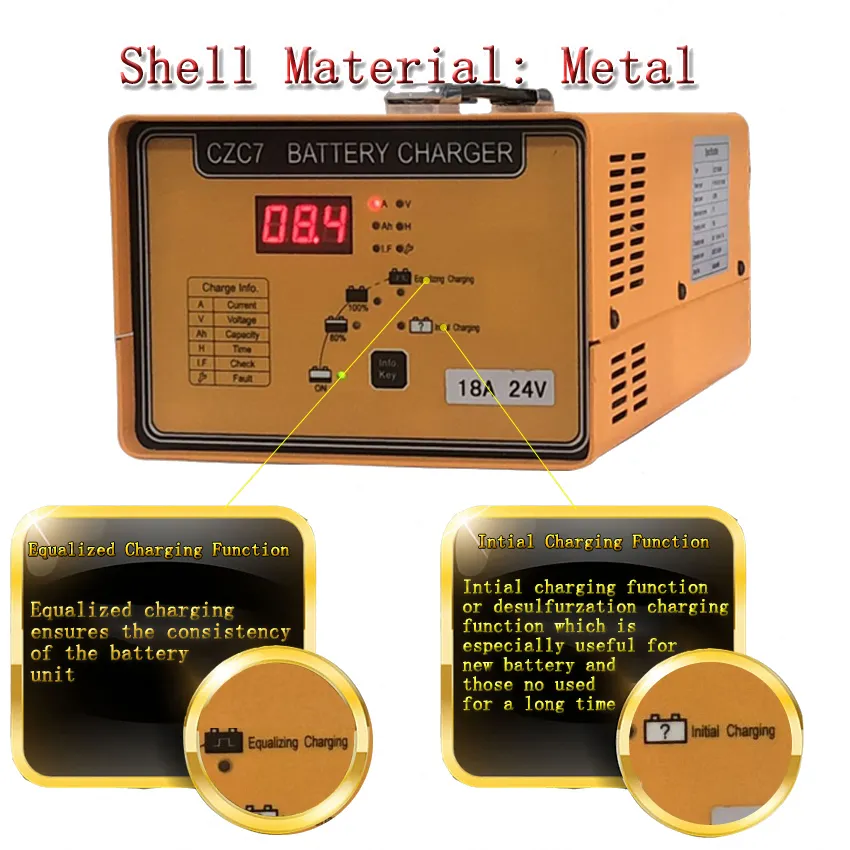

IWUIa or IWUUa multi-stage charging curves suitable for various lead acid batteries.

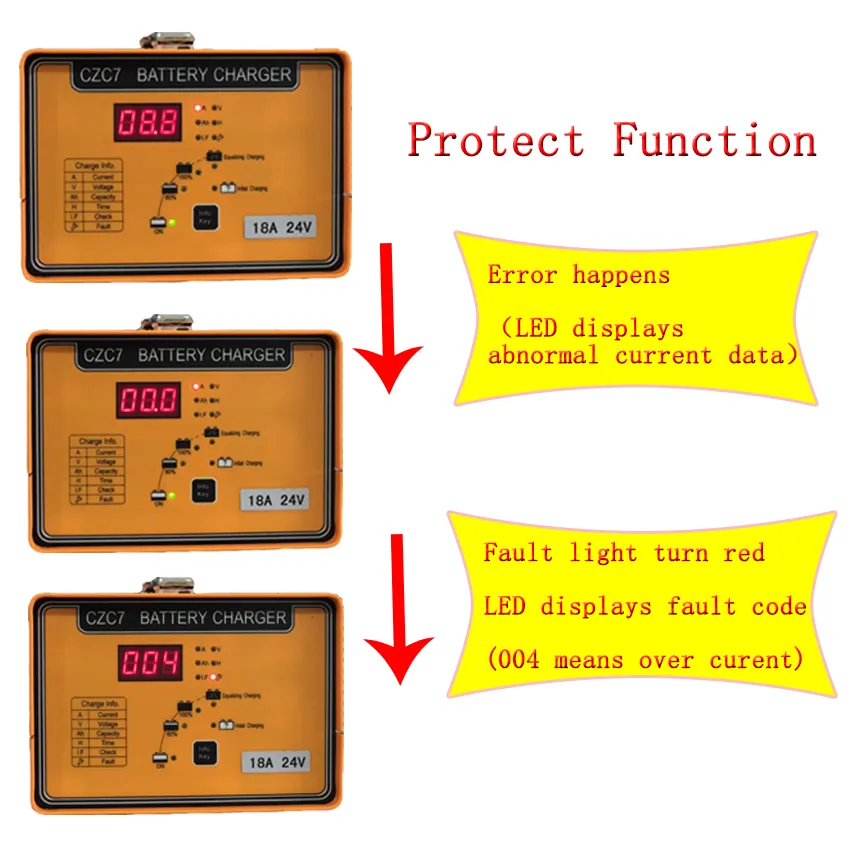

Comprehensive protection: open circuit, overload, short circuit, and over temperature.
Self-starting function if power is interrupted.

Technical Parameters

Type(A/V)	Rated Input	Charging Current(A)	Input Power(KW)	Battery Voltage(V)	Battery Range(AH)	Size(mm)	Weight(KG)
CZC7-20A/24V	Single phase 50/60Hz	20	0.72	24	130-165	200365140	6.6
CZC7-25A/24V		25	0.9	24	165-205	200365140	6.6
CZC7-30A/24V		30	1.08	24	200-250	200365140	6.6
CZC7-20A/48V		20	1.44	48	130-165	200365140	6.6
CZC7-40A/24V	Single phase	40	1.44	24	265-330	220405140	8.3
CZC7-30A/72V	Single phase	30	3.24	72	200-250	300430180	11.0

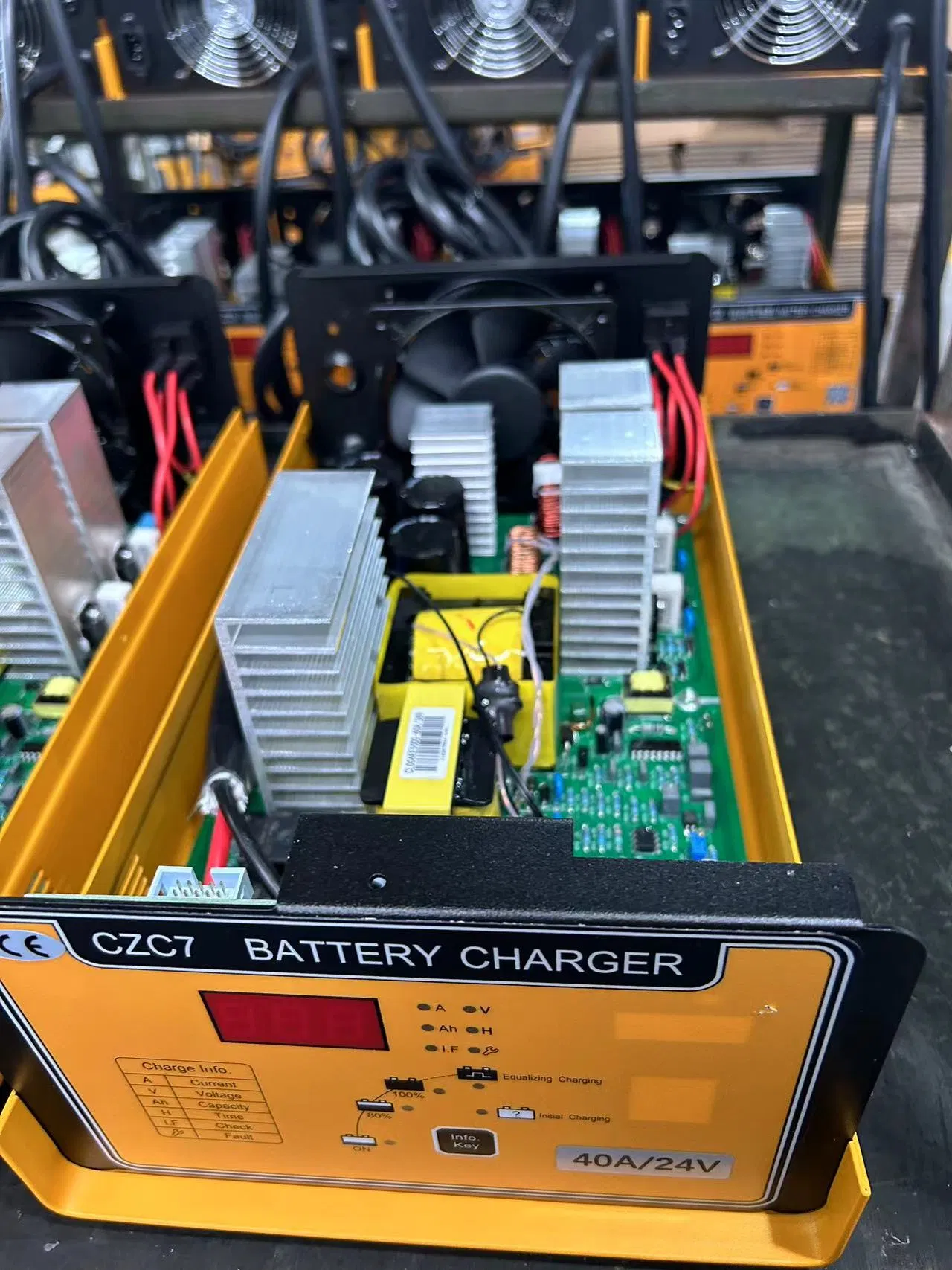

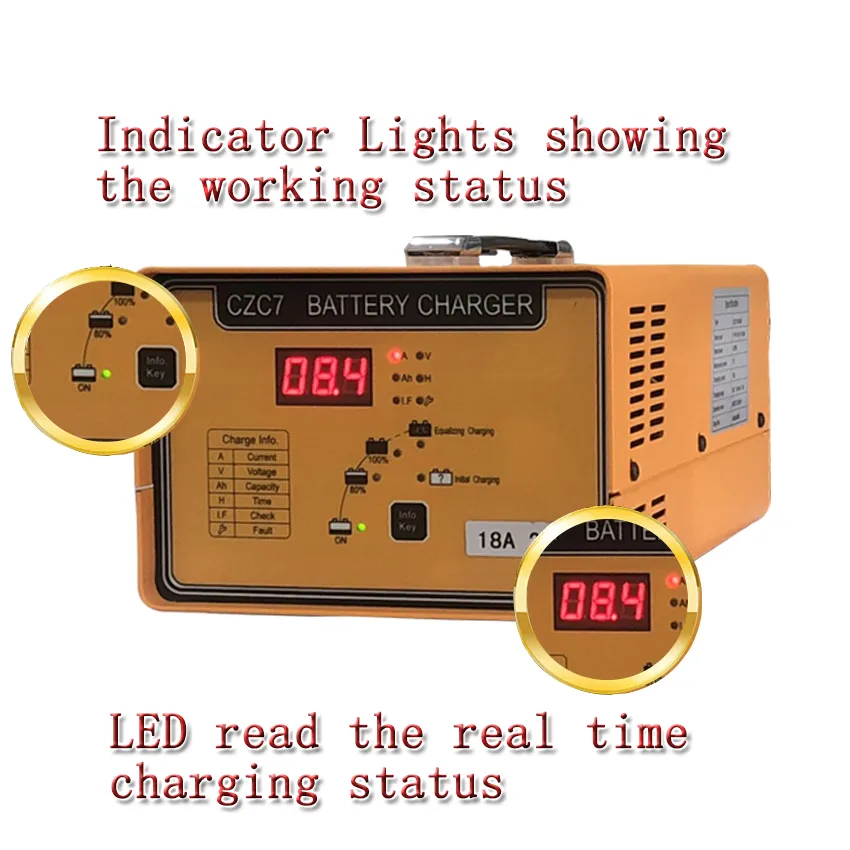

Product Showcase

Frequently Asked Questions

Are you a professional manufacturer?

Yes, we are a professional battery and charger manufacturer established since 1984 with over 30 years of history.

What is the warranty for the battery charger?

All products come with a one-year warranty and ongoing technical support.

Do your products have international certification?

Yes, we have CE and ISO certifications, and we can apply for other certificates as required.

What applications are these chargers suitable for?

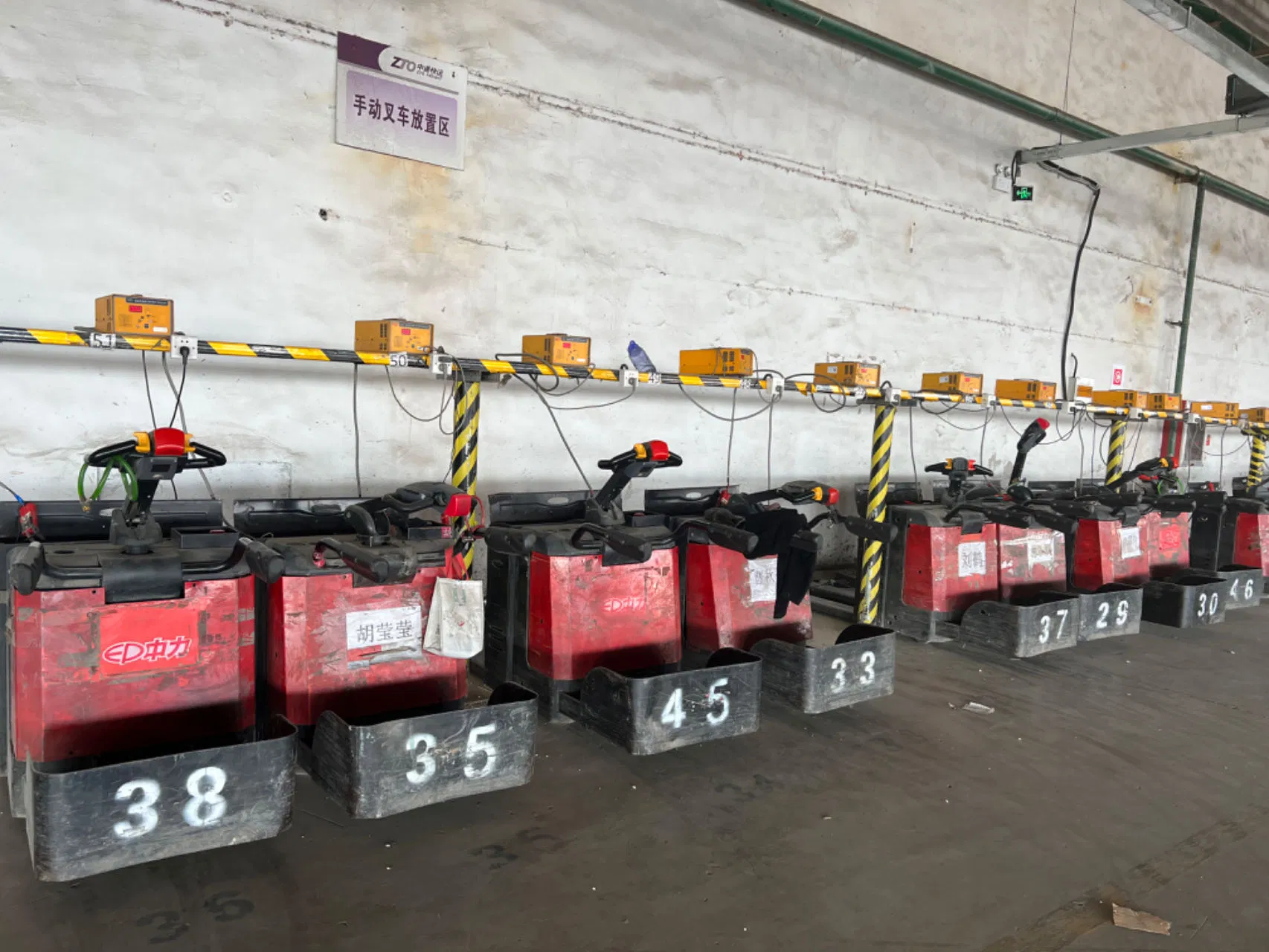

These chargers are designed for lead acid and lithium batteries used in forklifts, electric lifts, tow tractors, and other electric vehicles.

How is product quality controlled?

Our technical team tests product stability through thousands of trials before release. Every unit is inspected before delivery.

Does the charger resume work after a power cut?

Yes, the charger includes a self-starting function that automatically resumes the charging process if power is interrupted.
