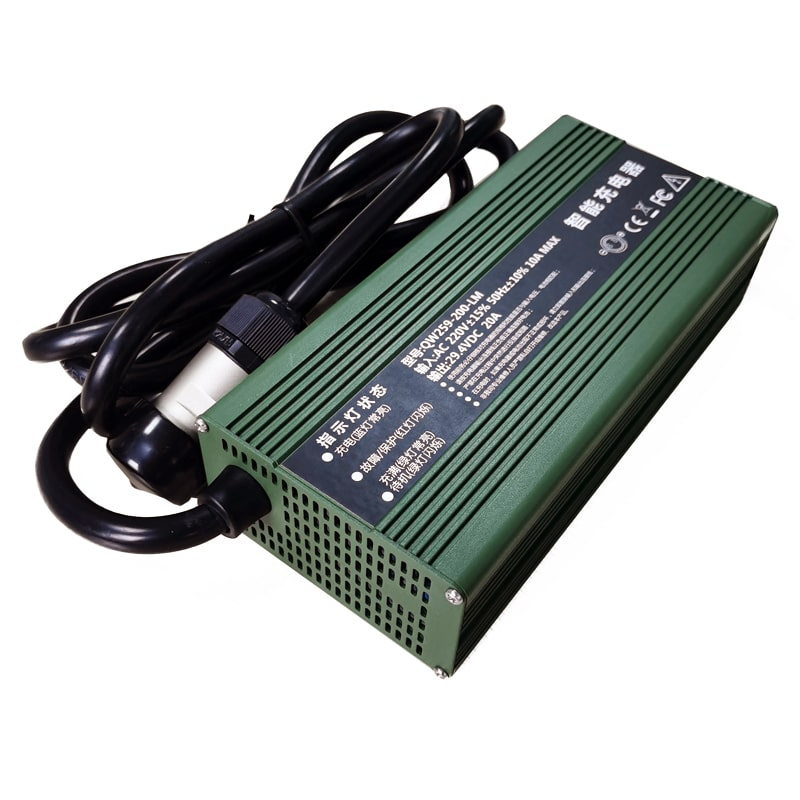

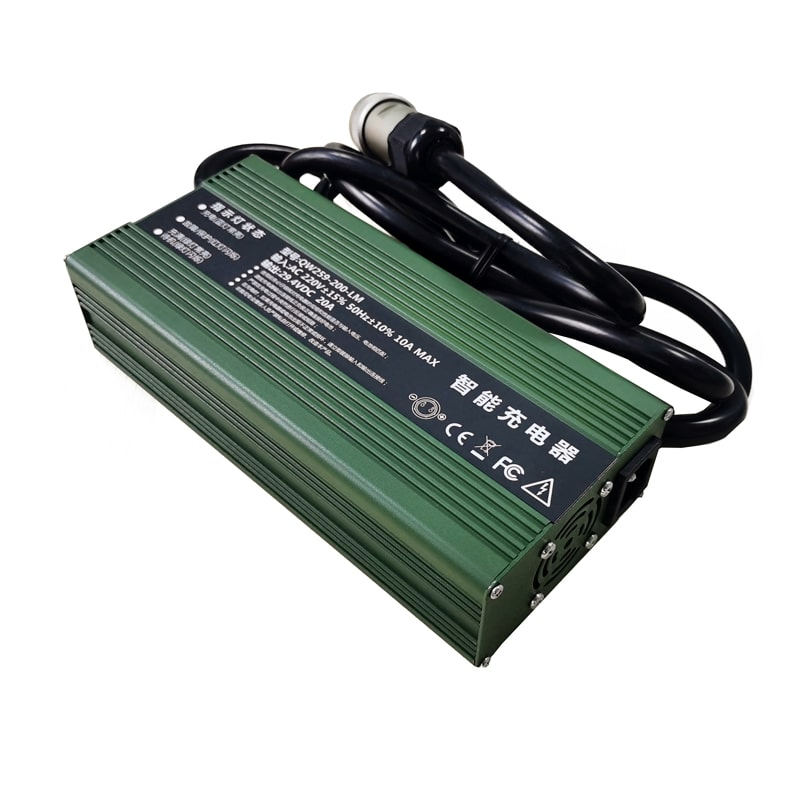

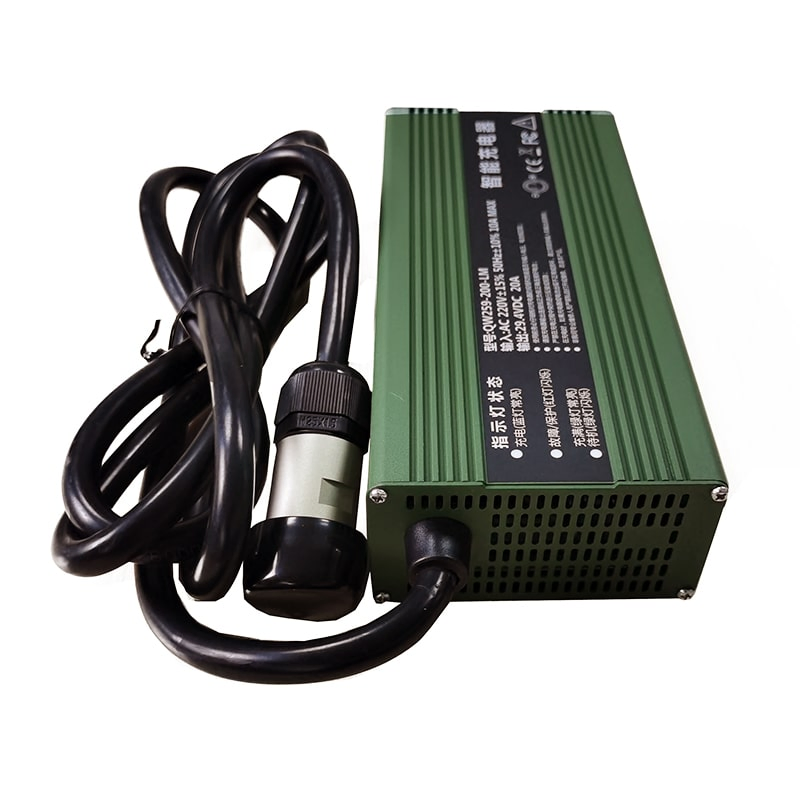

600W High Quality Battery Charger 12V 25A 30A Smart Charger DC 14.7V 25A 30A for SLA /AGM /VRLA /Gel Lead Acid Batteries

1 / 5

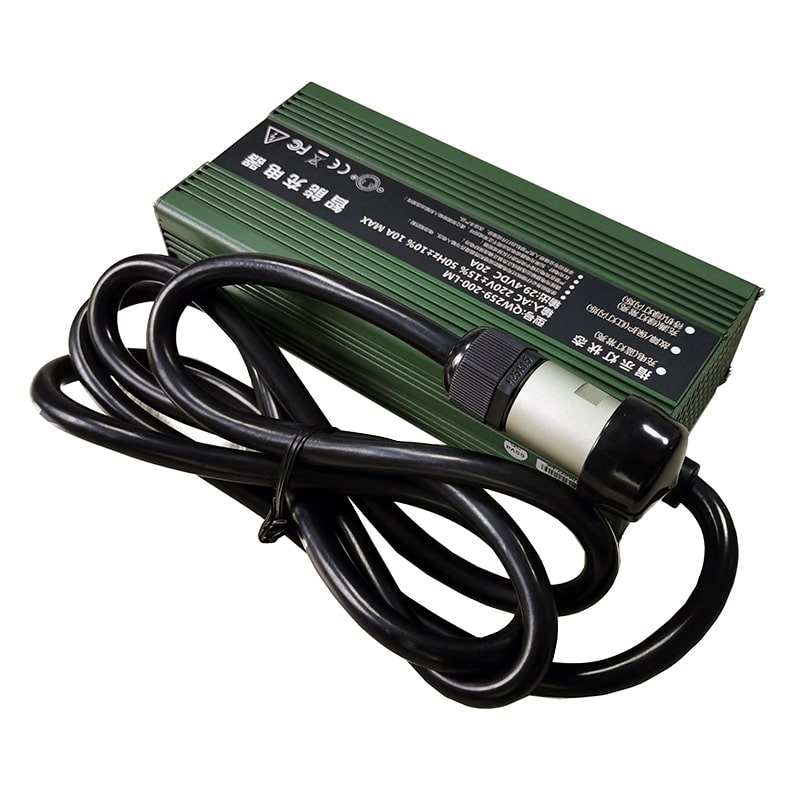

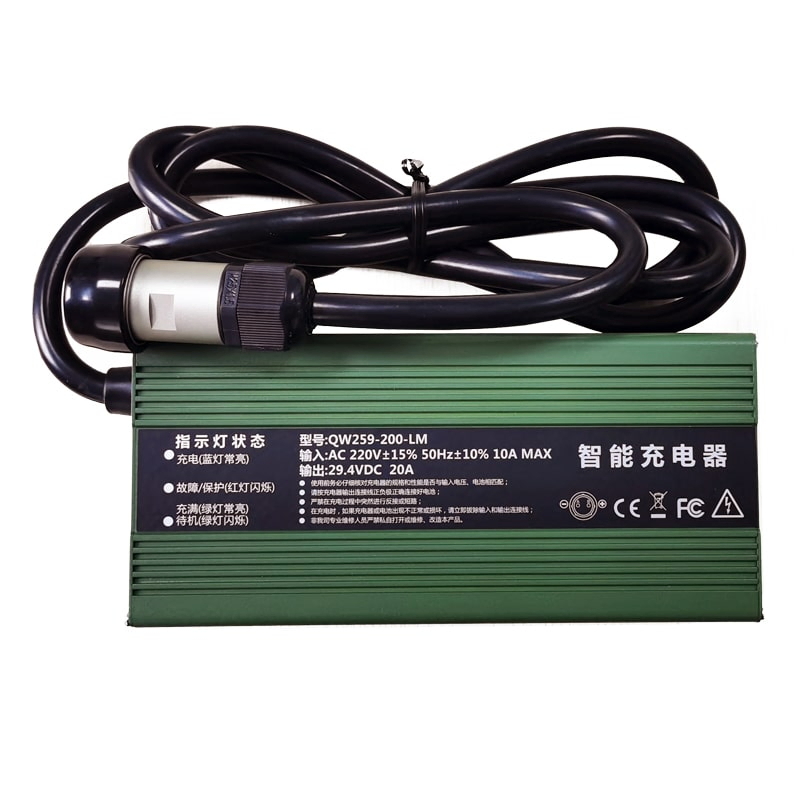

600W High Quality Battery Charger 12V 25A 30A Smart Charger DC 14.7V 25A 30A for SLA /AGM /VRLA /Gel Lead Acid Batteries

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

QW120-300-SM

Application

Standard Battery

Nominal Voltage

14.7V

Charger Style

Intelligent Charger

Battery Type

12-Volt Lead-Acid

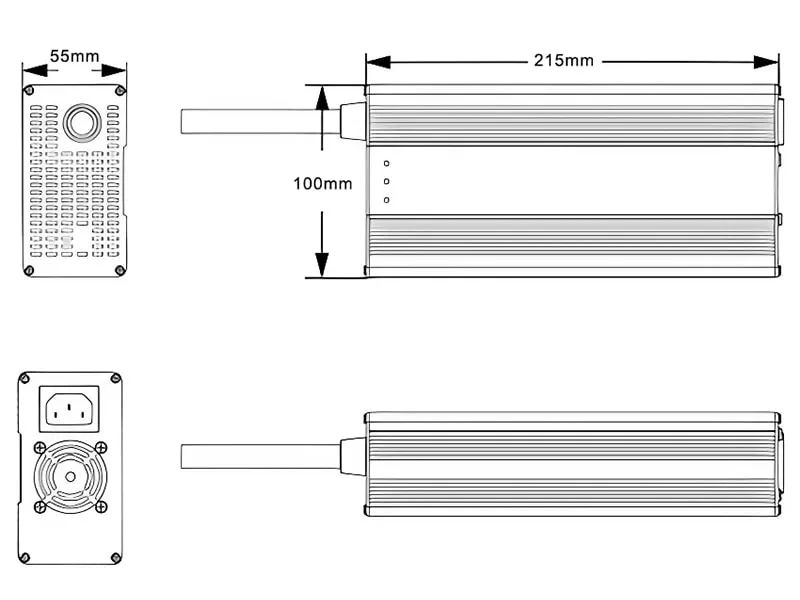

Dimensions

215*100*55mm

Certification

RoHS, CE

Input Voltage

100-240VAC 50/60Hz

Charging Current

30A (Max)

Shell Material

Aluminium Alloy

★

Product Overview

Quick Summary: This portable fast charger is designed for 12V SLA/AGM/VRLA/GEL lead-acid batteries. With a 441W output power and integrated PFC, it ensures high efficiency (>=90%) and reliable performance even in harsh environments (-40ºC ~ 70ºC).

Features:

Fully auto CC + CV(H) + CV(L) charging process with MCU controller.
Constant big charging current for faster charging cycles.
Automatically charging ending with Cut-Off output for safety.

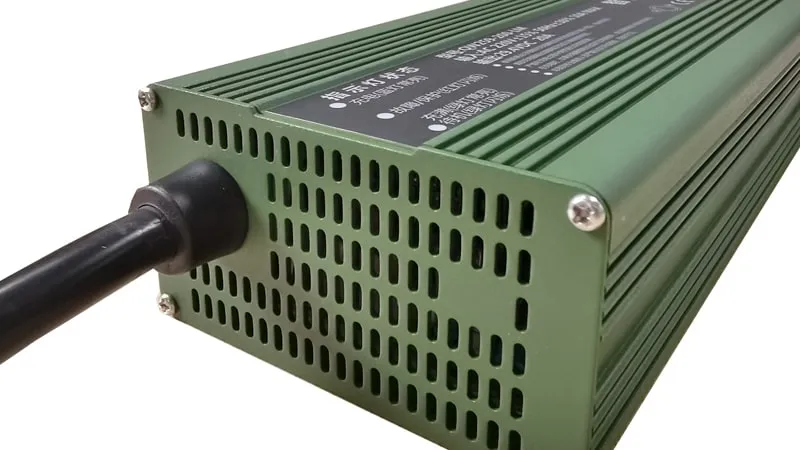

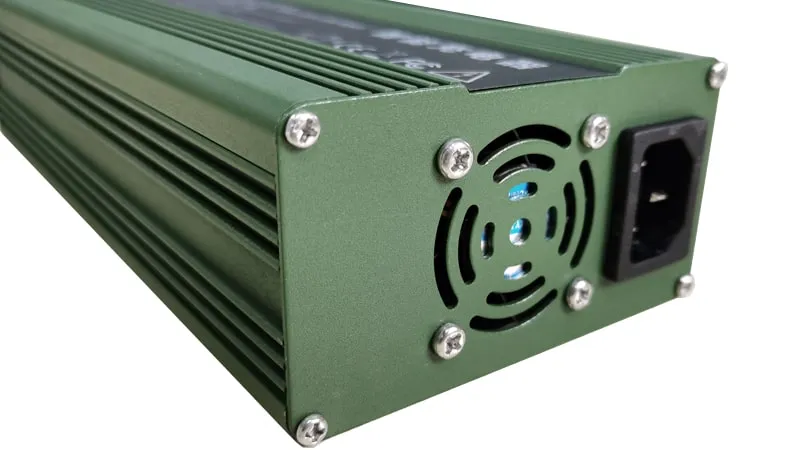

Durable metal case equipped with Fan Cooling for heat dissipation.
Harsh environment ready: rain proof, low temperature resistance, and corrosion resistance.
Suitable for 12V batteries with capacities ranging from 120Ah to 240Ah.

●

LED Status Indicators

Waiting Mode: GREEN ON

Charging Mode: BLUE FLASH

Full Charged: GREEN ON

Charge Error: RED FLASH

🛡

Integrated Safety Protections

Over Current Protection

Over Voltage Protection

Short Circuit Protection

Reverse Polarity Protection

Anti-revert Current Protection

Anti-spark Protection

📋

Typical Product Models

Model	Battery Type	Input Voltage(V)	Battery Voltage(V)	Charging Voltage(V)	Current(A)
QW128-300-FM	LiFePO4	AC 100~264V	12.8(4S)	14.6	30
QW256-200-FM	LiFePO4		25.6(8S)	29.2	20
QW512-100-FM	LiFePO4		51.2(16S)	58.4	10
QW148-300-LM	Lithium		14.8(4S)	16.8	30
QW481-100-LM	Lithium		48.1(13S)	54.6	10
QW120-300-SM	Lead Acid		12(1S)	14.7	30
QW240-200-SM	Lead Acid	AC 100~264V	24(2S)	29.4	20
QW480-100-SM	Lead Acid	AC 100~264V	48(4S)	58.8	10

📷

Product Gallery

Frequently Asked Questions

What types of batteries is this charger compatible with?

It is designed for 12V Lead-Acid batteries, including SLA, AGM, VRLA, and GEL types.

What is the charging process for this smart charger?

The charger uses a 3-stage process: CC (Constant Current), CV (Constant Voltage), and Float Charge, all managed by an MCU controller.

Can this charger be used outdoors or in extreme temperatures?

Yes, it features a rain-proof design and is rated for operation in temperatures ranging from -40ºC to 70ºC.

What does the LED indicator signify?

Green indicates waiting or fully charged, flashing Blue means charging is in progress, and flashing Red indicates a charging error.

Does it offer protection against incorrect battery connection?

Absolutely. It includes reverse polarity protection, short circuit protection, and anti-spark protection for safe operation.

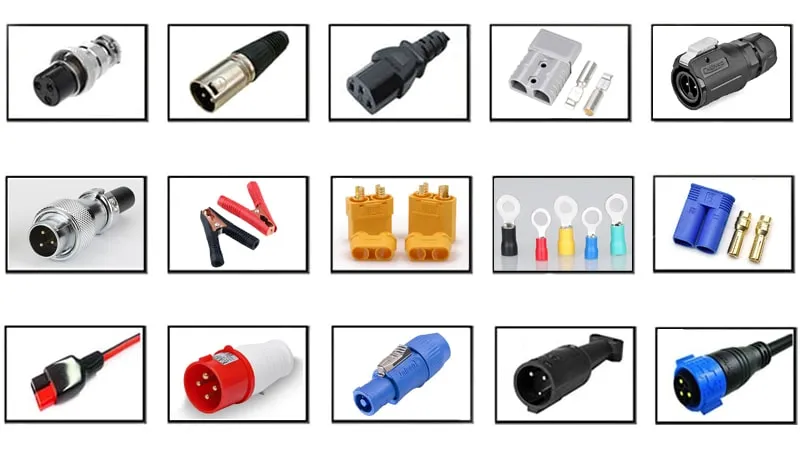

What output connectors are available?

We offer various options including Waterproof plugs, Crocodile Clips, Aviation Connectors, XLR, Ring terminals, SAE Plugs, and Anderson Connectors.
