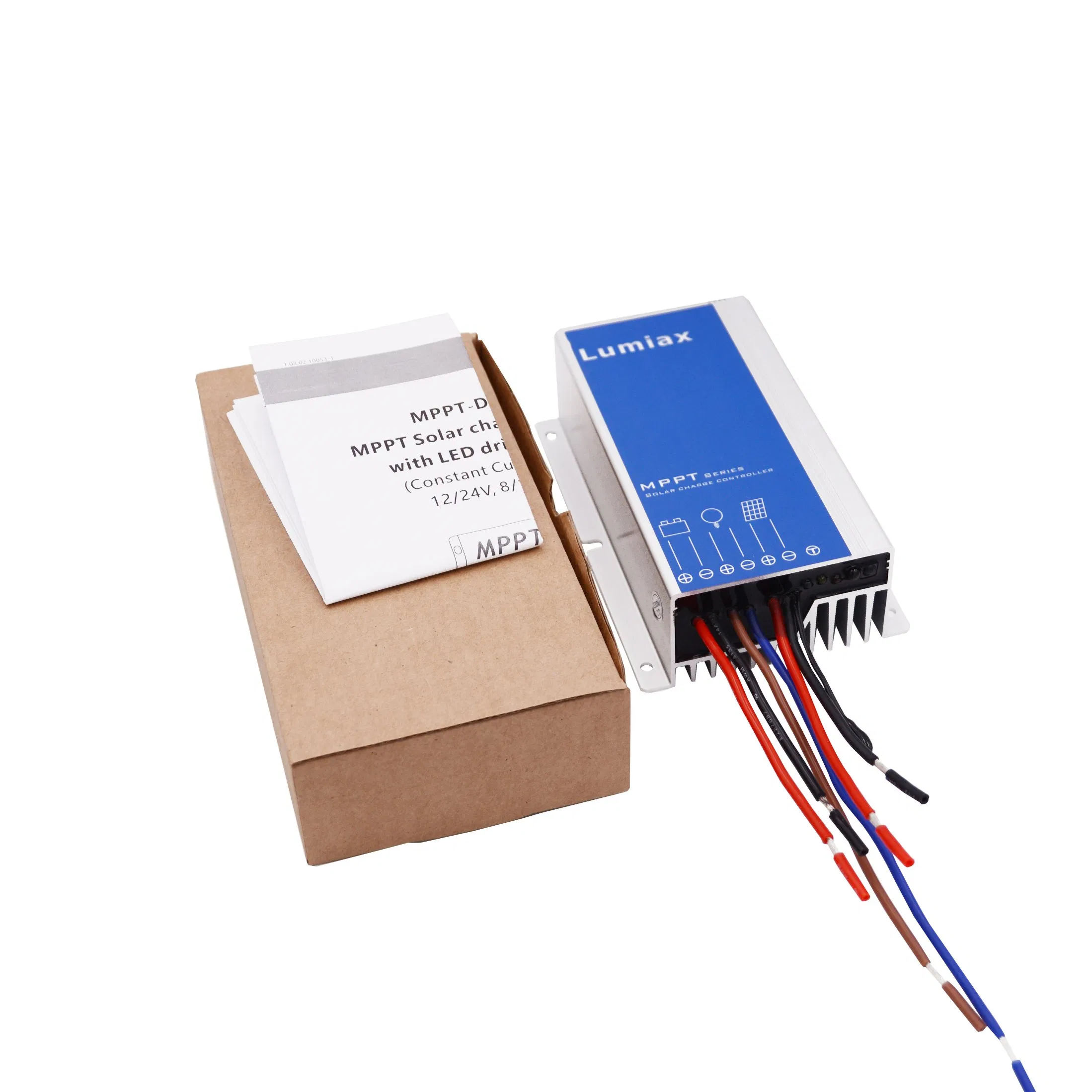

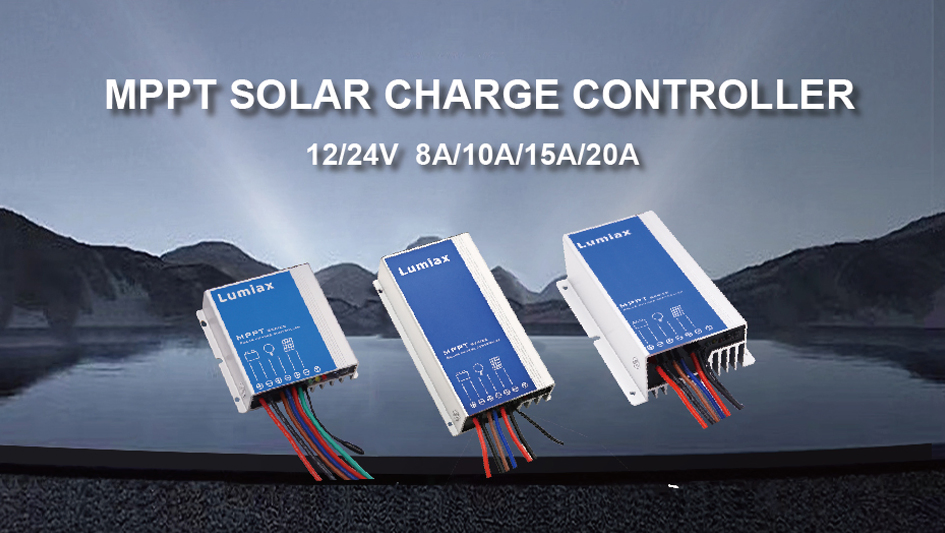

MPPT Solar Charge Controller Solar Street Light LED 8A 10A 15A 20A

MPPT Solar Charge Controller Solar Street Light LED 8A 10A 15A 20A

MPPT Solar Charge Controller Solar Street Light LED 8A 10A 15A 20A

MPPT Solar Charge Controller Solar Street Light LED 8A 10A 15A 20A

MPPT Solar Charge Controller Solar Street Light LED 8A 10A 15A 20A

1 / 5

MPPT Solar Charge Controller Solar Street Light LED 8A 10A 15A 20A

MPPT Solar Charge Controller Solar Street Light LED 8A 10A 15A 20A

MPPT Solar Charge Controller Solar Street Light LED 8A 10A 15A 20A

MPPT Solar Charge Controller Solar Street Light LED 8A 10A 15A 20A

MPPT Solar Charge Controller Solar Street Light LED 8A 10A 15A 20A

MPPT Solar Charge Controller Solar Street Light LED 8A 10A 15A 20A

Customization:	Available
After-sales Service:	Installation and Debugging Guide
Warranty:	2 Years

Send Inquiry

Product Description

Basic Info.

Model NO.MPPT-DC Series

ConditionNew

CertificationISO, CE

Rated Voltage12V/24V

Charging Current8A;10A;15A;20A

Protection DegreeIP67

Max Efficiency>99.9%

Battery TypeLiquid, Gel, AGM, Lithium

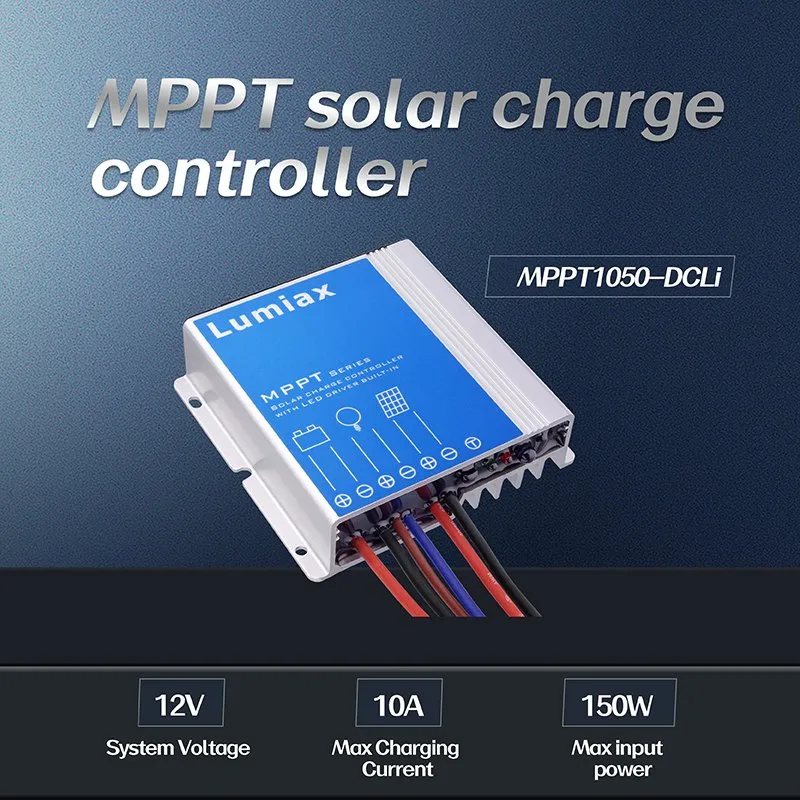

MPPT Controller Overview

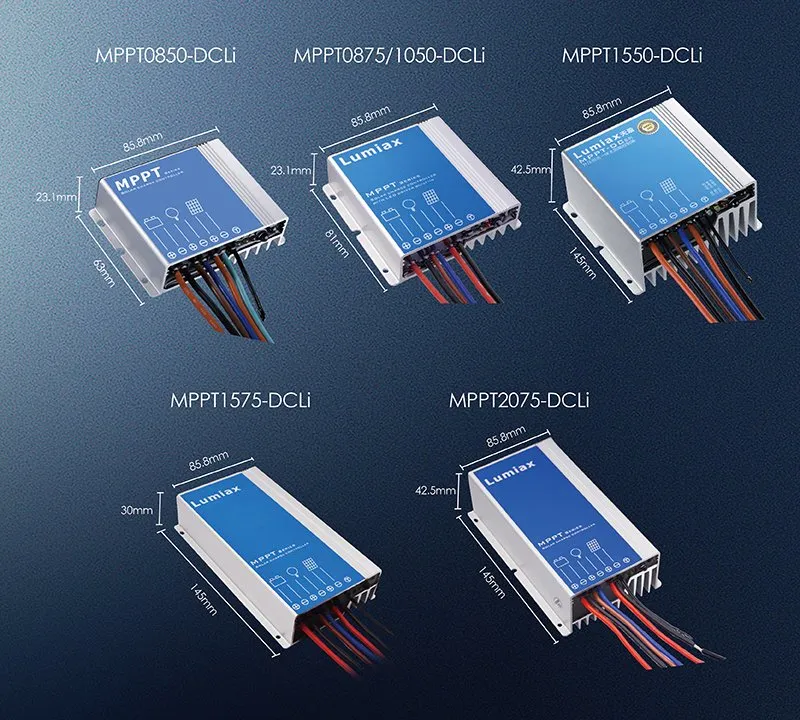

MPPT Controller Dimension

Product Parameters

Item	MPPT0850-DCLi/G	MPPT0875-DCLi/G	MPPT1050-DCLi/G	MPPT1550-DCLi/G
System Voltage	12V			12V
Max Charging Current	8A	8A	10A	15A
Max volt on Bat. Terminal	25V
Battery Type	Liquid, Gel, AGM and Lithium (Programmable)
Boost Voltage	14.5V @25ºC
Float Voltage	13.7V @25ºC
Max volt on PV terminal	35V	60V	45V	35V
Max input power	100W~120W		120W~150W	180W~225W
Output Power	1~50W	1~60W		1~80W
Communication mode	Infrared/2.4G/IOT
Protection degree	IP67

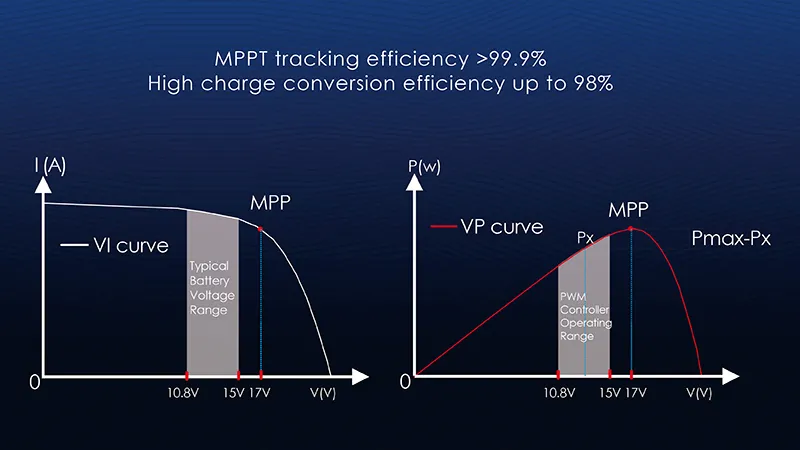

Technical Specifications Diagram

Product Description

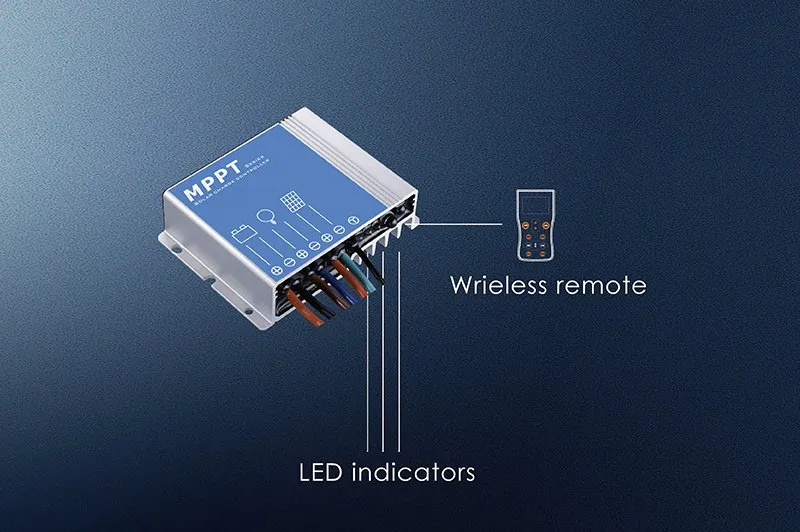

Feature 2

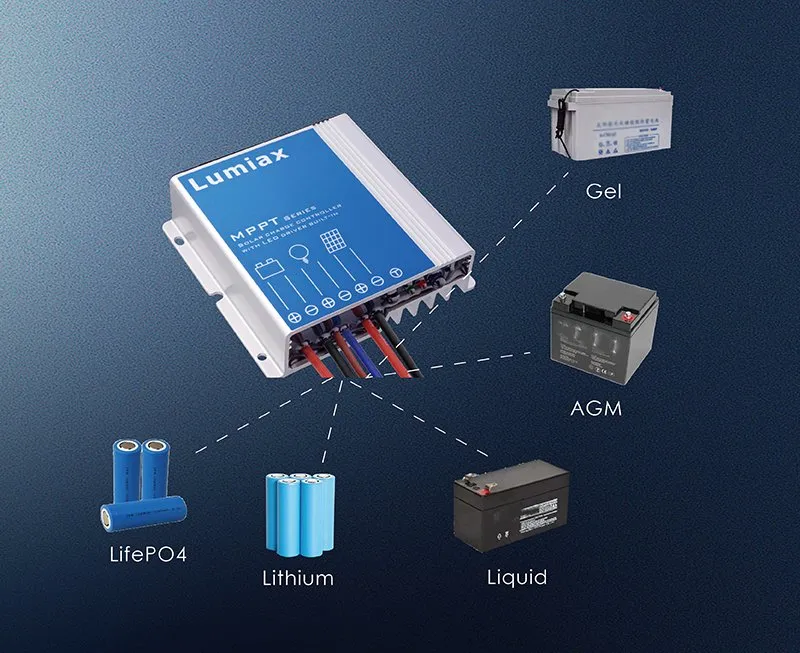

Feature 3

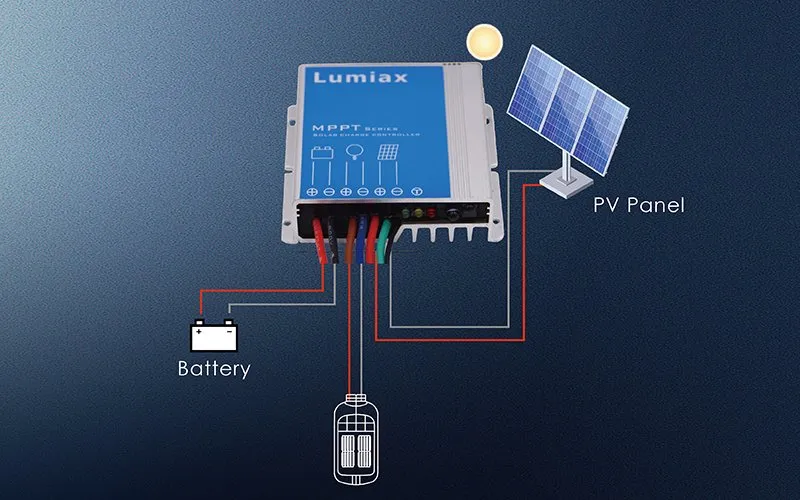

Feature 4

Our Advantages & Certifications

Advantage 1

Advantage 2

Product Certifications

Company Profile

Factory Environment

Workshop

Production Line

Testing Area

Production Scale

Quality Control

Frequently Asked Questions

What is the maximum tracking efficiency of the MPPT-DC series?

The controller provides a maximum tracking efficiency of over 99.9% with a charge conversion efficiency of up to 96.5%.

Does this controller support Lithium batteries?

Yes, it is compatible with Liquid, Gel, AGM, and Lithium batteries. The lithium settings are fully programmable.

What is the waterproof rating of this product?

This series is rated IP67, making it highly resistant to dust and water, suitable for outdoor solar street light applications.

What communication methods can be used for configuration?

The controller supports Infrared, 2.4G, and IOT communication modes for easy parameter adjustment.

What are the available sensing modes?

It supports both Infrared Human Sensing and Microwave Sensing to optimize lighting efficiency and energy saving.
