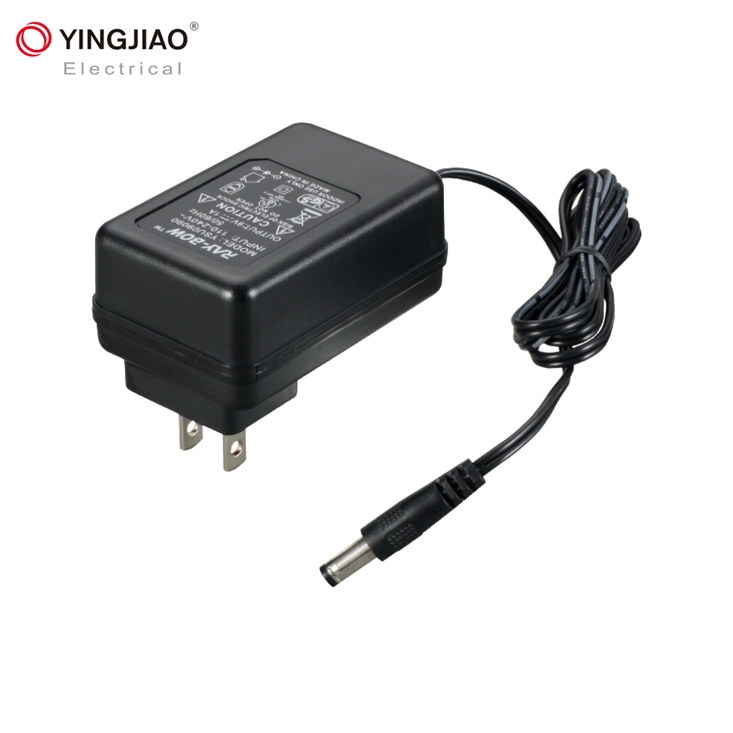

Input 100-240V 50/60Hz Battery Charger NiMH Battery Trickle Smart Charger
Input 100-240V 50/60Hz Battery Charger NiMH Battery Trickle Smart Charger
Input 100-240V 50/60Hz Battery Charger NiMH Battery Trickle Smart Charger
Input 100-240V 50/60Hz Battery Charger NiMH Battery Trickle Smart Charger
Input 100-240V 50/60Hz Battery Charger NiMH Battery Trickle Smart Charger
1 / 5
Input 100-240V 50/60Hz Battery Charger NiMH Battery Trickle Smart Charger
Input 100-240V 50/60Hz Battery Charger NiMH Battery Trickle Smart Charger
Input 100-240V 50/60Hz Battery Charger NiMH Battery Trickle Smart Charger
Input 100-240V 50/60Hz Battery Charger NiMH Battery Trickle Smart Charger
Input 100-240V 50/60Hz Battery Charger NiMH Battery Trickle Smart Charger

Input 100-240V 50/60Hz Battery Charger NiMH Battery Trickle Smart Charger

Customization: Available
Usage: Laptop, Switching, Mobile Phone, Game Player, Digital Camera, Phone, Display
Output Type: AC / DC
Send Inquiry

Product Description

Basic Specifications
Model NO.
YS16U
Certification
RoHS, CE, EMC, FCC, Reach
Rated Power
18W Max
Input
100-240VAC 50/60Hz
Color
Black
Connection
Plug In
Dimension
70*45*30mm
Weight
120g
⚡
18W Smart Battery Charger
Optimized for NiMH Battery Trickle Charging with Universal AC Input 100-240V.
Product Description
Battery typeNI-MH battery charger
Output Voltage6V / 9V / 12V / 13.5V / 15V / 16.5V / 18V
Output Current0.1-2A Constant Current
No Load Consumption<0.3W
ProtectionsShort Circuit / Over Current / Over Voltage
Working TEMP.-20 to 50°C
MTBF100,000 hours minimum at 25°C
Input PlugEU, UK, US, AU plug options available
Technical Parameters
Model DC Voltage Rated Current Current Range Rated Power
YS16-09015009V1500mA100-1500mA13.5W
YS16-120150012V1500mA100-1500mA18W
YS16-135100013.5V1000mA100-1000mA13.5W
YS16-150100015V1000mA100-1000mA15W
YS16-165080016.5V1000mA100-1000mA16.5W
LED indicator: Red is charging, Green is idle or fully charged.
Float charge: Continuous 150mA float current after full charge.

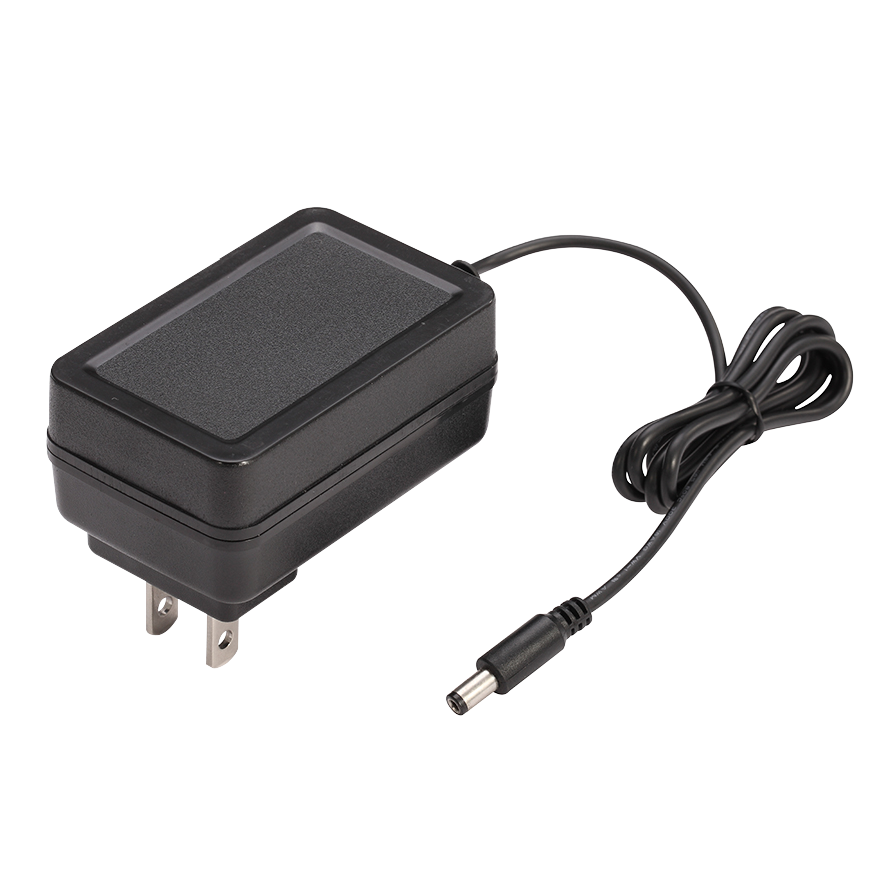

Product Showcase
Smart Battery Charger

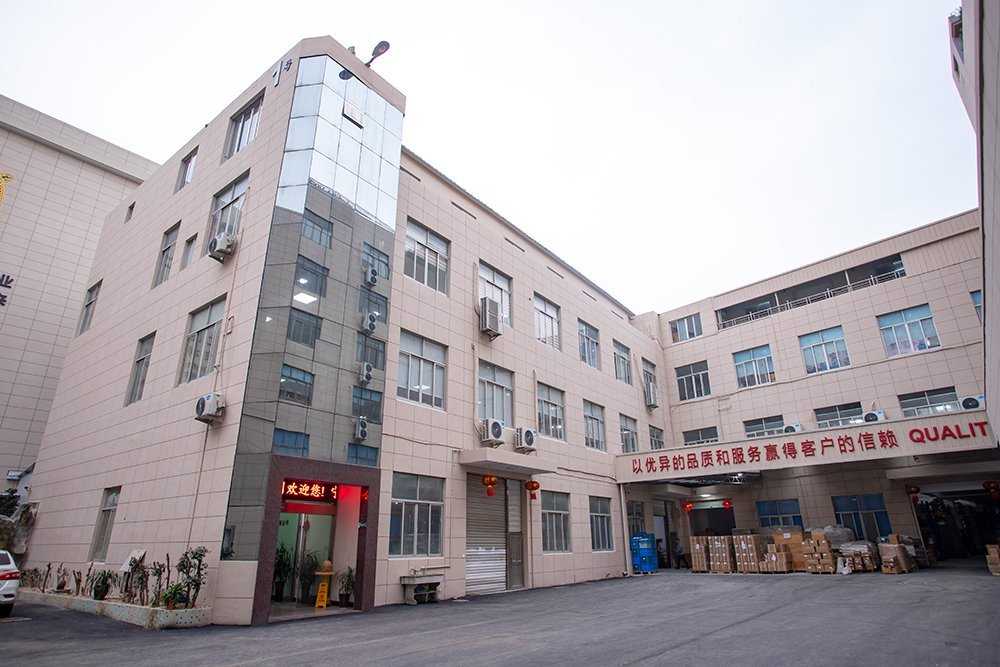

Factory & Production
More Products

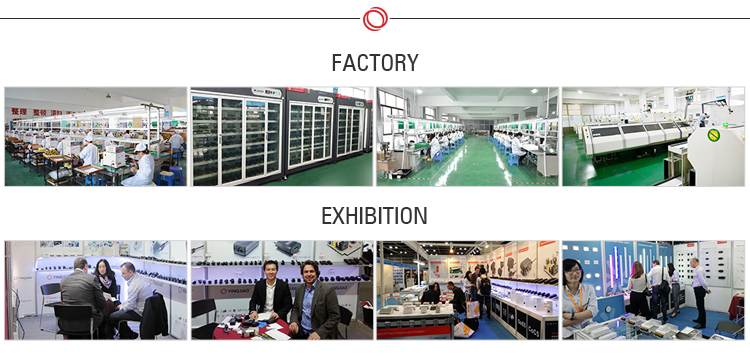

Factory Exhibition
Certificates

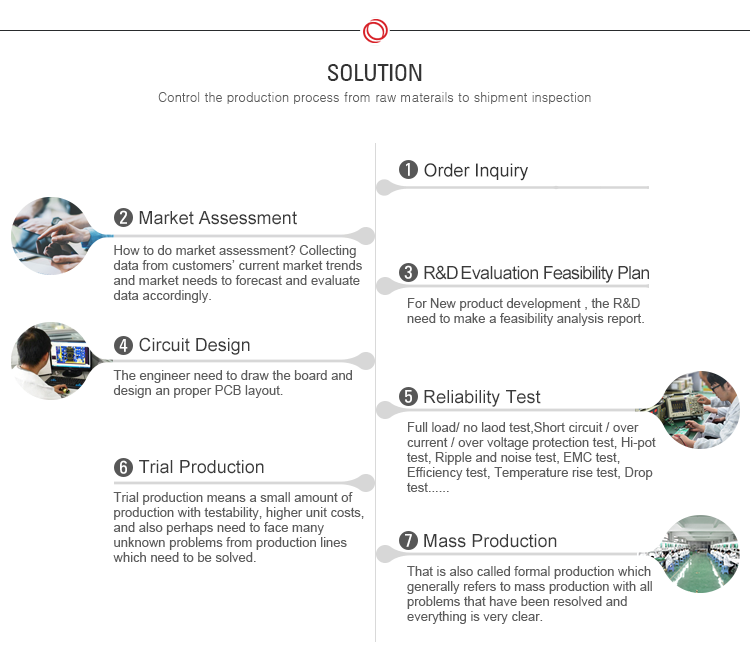

Solution
Transport
Frequently Asked Questions
What type of batteries can this charger be used for?
This smart charger is specifically designed for NiMH (Nickel-Metal Hydride) batteries, supporting various voltage ranges from 6V to 18V.
How does the LED charging indicator work?
The LED light turns Red when the battery is actively charging. It switches to Green when the charger is in idle mode or the battery is fully charged.
Does this charger support international use?
Yes, it features a wide input voltage range of 100-240VAC at 50/60Hz, making it compatible with power standards worldwide.
What safety protections are built into the device?
The charger includes integrated protection against Short Circuits (SCP), Over Current (OCP), and Over Voltage (OVP) to ensure safe operation.
Does it provide trickle charging after a full charge?
Yes, after reaching full charge, the device maintains a continuous float charging current of approximately 150mA to keep the battery topped up.
What certifications does this product hold?
The YS16U model is compliant with major international standards including CE, EMC, RoHS, REACH, and FCC.
